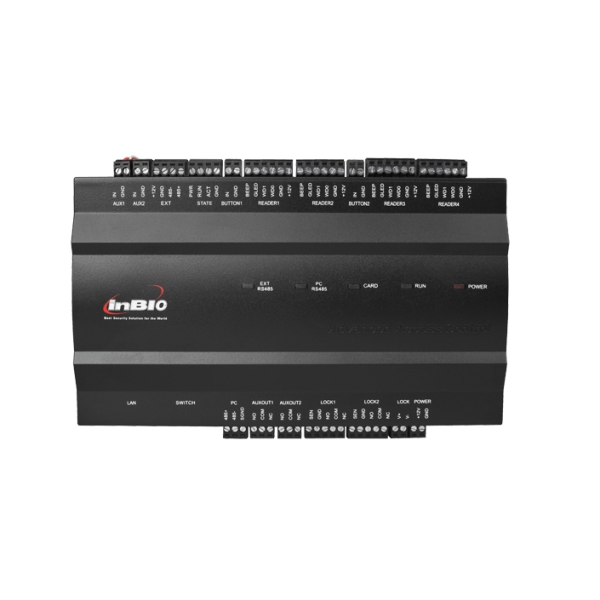

      InBio carries out the matching of fingerprints on the panels. The FR Series of readers transmit fingerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication. Auto-discovery tool allows setting and modication of network parameters directly and easily.



      InBio controller firmware can be upgraded in the field. Stores up to 3,000 fingerprint templates, 30,000 card users, and up to 100,000 events and transactions. Controller is backed up in real-time in on-board SD card. Data is preserved if power is lost. InBio continues to opperate if network conection is interrupted. Along with relay contacts for controlling door locks, easily programmable auxilary relays can be used for additional control and interface to lights, alarms, annunciators, intrusion detection panels, or even extra locking devices or gate controllers.



      InBio controllers come in three sizes to suit project needs and reduce the cost of unused capacity. 1-door, 2-door, and 4-door models can be mixed and matched in an optimized system architecture. Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxilary Input/Output Linkages are built into controller firmware.



      Free SDK is available for integrators and OEM’s to integrate the InBio controllers with their or existing security or personnel management applications. Upon request, ZK can also customize InBio firmware to meet any custom requirements.



      Specification of InBio160

      User Capacity

      30,000

                            Fingerprint



      3,000

      Event Buffer

      100,000 transactions

      Communication

      RS485, Ethernet

      Nominal Voltage of InBio160

      12v

      Standby Current of InBio160

      50mA

      Operating Temp

      0°C~ 45 °C

      Operating Humidity

      20%~ 80%

      Number of doors controlled

      One door

      Number of readers Supported

      2
                            Aux. Input



      1

      Aux. Output

      1

      Types of readers supported

      26-bit Wiegand, others upon request

      Number of Inputs

      2 (Exit Device and Door Status)

      Number of Outputs

      2 (One Form C relay for lock and one Form C relay for Aux output)

      Weight

      3.35kg

      Dimensions (Bundle Only)

      305.2mm × 298.4mm × 89mm

      Dimensions ( Board Only)

      183mm × 106mm

      Specification of POE Splitter

      Maximum Power

      15.4W (IEEE 802.3af)ï¼›25.5W (IEEE 802.3at)

      Input voltage

      36-57V

      Output voltage:

      12V

      Network standards

      IEEE802.3i 10 BASE-T

      IEEE802.3i 100 BASE-TX

      IEEE802.3x flow control

      IEEE802.3af/ IEEE802.3at

      Working Temperature

      0°C ~ 45 °C

      Interface protection

      Meet the IEC61000-4-2 (ESD) ± 15KV (air), ± 8KV (contact) requires

      Able to withstand 8/20us 24A (12A) energy

      Input

      an input RJ45 interface

      Output

      an output RJ45 connector and a DC output interface

      Data transfer rate

      10/100/1000Mbps

      The maximum transmission distance

      100 meters
